Wood is one of the oldest and most popular building materials ever. We rely on the best of nature for your wooden house, but also for schools, kindergartens, public buildings, office buildings and multi-storey residential construction: solid, natural wood. At Woodbloc in the Bavarian Forest, wood is rethought – and done really well. Our sustainable solid wood walls and dowelled wood ceilings enable largely glue-free, solid construction with wood.

SOLID WOOD WALL

WOODBLOC- THE NATURAL SOLID WOOD WALL

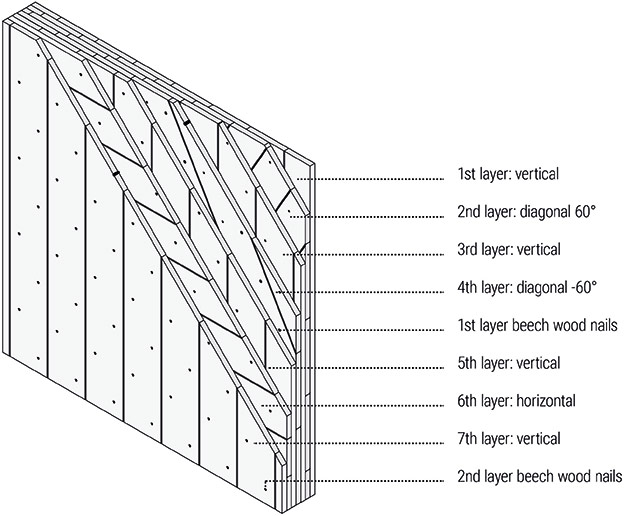

  • Cross-layer nailed wall made of solid wood
    – with LIGNOLOC beech wood nails
  • Wall thicknesses: 9.0 cm (4 layers), 11.5 cm (5 layers), 16.0 cm (7 layers), 20.5 cm (9 layers); 25.0 cm (11 layers), 29.5 cm (13 layers), 34.0 cm (15 layers); 9.0 cm & 11.5 cm walls are non-load-bearing walls without diagonal nailing
  • Wall dimensions: 0.75 m x 0.75 m to 8.0 m x 4.0 m
  • Raw material: Spruce wood C16
  • Use: Interior and exterior walls, visible quality Si and non-visible quality Nsi
  • Various surface layers possible, e.g. clay plaster, drywall, visible finish with selected boards or 1st layer as board material; additional visible surfaces possible on one side in white fir/larch/swiss pine/reclaimed wood
  • Possible timber construction projects:

    Residential construction, housing, multi-storey residential construction, commercial construction, public buildings

Sustainable
nailing.

Processing with LIGNOLOC wood nails

3 advantages for your timber construction project:

Almost adhesive-free wood construction with smooth, beautiful walls

Simple, clean installation

Sustainable solid timber construction & short construction time

DOWELLED WOOD CEILING

The Woodbloc dowelled wood ceilings are also made of solid wood. You build ecologically, almost glue-free and still cost-conscious, with prefabricated ceiling elements. The stacked plank elements are the perfect alternative to concrete ceilings, but can also be used in hybrid wood-concrete construction, e.g., as timber-concrete composite ceilings.

  • Beams made of untreated sawn or structural solid wood
  • Pure nature: no metallic connections
  • Climate-friendly construction with prefabricated ceiling elements

WOODBLOC – THE LOAD-BEARING DOWELLED WOOD CEILING

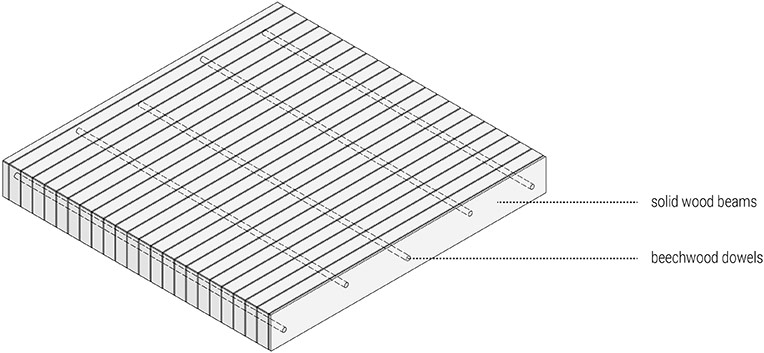

  • Stacked plank ceiling made of solid wood connected with beech wood dowels
  • Ceiling thickness: 80 mm to 240 mm
  • Ceiling dimensions: 30 cm to 240 cm wide & 1 m to 13 m long
  • Raw material: Spruce wood 40 mm or 60 mm wide C16
  • Use: ceilings and walls
  • Various surfaces and profiles possible, e.g. visible quality Si and non-visible Nsi, in visible quality Si chamfer, Si acoustic, or Si acoustic+ with wood fiber insulation
  • Possible timber construction projects:
    Residential construction, housing, multi-storey residential construction, commercial construction, public buildings

Processing with beech wood dowels

The ceiling contains the pure power of nature: The wooden planks of the massive ceiling elements are connected with beech wood dowels and then finished – for clean cut edges, precise fitting, and rapid construction progress in your timber project.

3 advantages for your timber construction project:

Also available as acoustic ceiling or acoustic ceiling+

High sound insulation & sustainable timber construction

Easy installation by carpenters or masons
